FORCED AIR DRYING OVEN, OVF
Price range: 773,57 € through 1.406,13 €
Metallic outer case painted with epoxy resin. Inner chamber in mirror stainless steel. Adjustable temperatures from 40° C to 300° C. Resolution: 0.1°C. Fluctuation of the temperature: ± 1°C. Temperature regulation by microprocessor with functions like over-temperature protection, sensor fault alarm, fixed temperature operation, timing function (0-9999 min), correction of deviation, internal parameter locked, etc. Homogeneity and temperature stability: ± 2.5%. Adjustable feet to facilitate the installation and leveling of the oven. Door with 180° opening window with double thermal safety glass for external control, without temperature variations in the inner chamber. Forced air convection (non-adjustable). Standard fan switch that allows to work with natural convection (except for DOVF-230-001 oven, which does not have a fan switch). Top ventilation hole Ø 35 mm (DOVF-230-001 has the hole on the rear wall and includes a test port on the right side). Easy to clean. Supplied with two grid trays adjustable in height (can accept more trays, see table). DOVF-230-001 has wheels. 220 V / 50-60 Hz. Warranty 2 years
Complies with the specifications defined in the European directive
Product covered by a 2-year warranty against possible manufacturing or functional defects. Excludes damage resulting from improper use or external conditions unrelated to the product.
Bulky item. Please ensure that access and delivery areas allow for proper receipt and handling.
| reference | capacity | ext dim (L x W x H) | int dim(L x W x H) | max n° of shelves | pcs/pack | price/pack | available stock | quantity | |
|---|---|---|---|---|---|---|---|---|---|
| DOVF-030-001 | 30 L | 450 x 500 x 690 mm | 310 x 310 x 310 mm | 6 | 1 | 773,57 € | 0 | ||

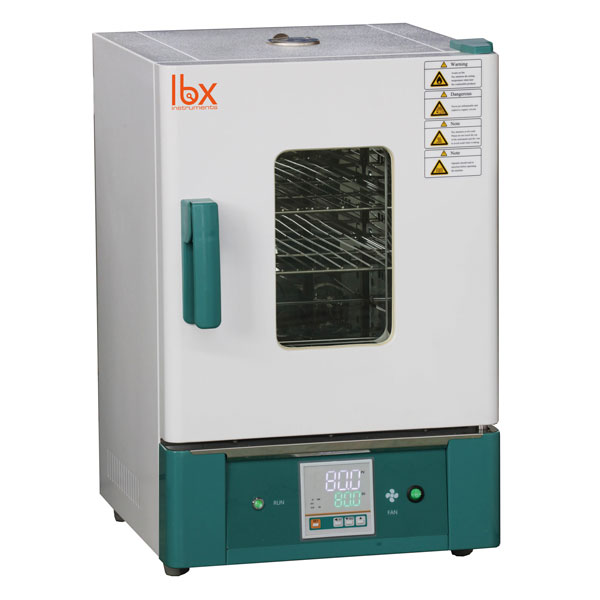

| DOVF-045-001 | 45 L | 490 x 540 x 730 mm | 350 x 350 x 350 mm | 7 | 1 | 894,99 € | 2 | ||
| DOVF-065-001 | 65 L | 540 x 550 x 830 mm | 400 x 360 x 450 mm | 9 | 1 | 989,97 € | 2 | ||
| DOVF-125-001 | 125 L | 640 x 640 x 930 mm | 500 x 450 x 550 mm | 11 | 1 | 1.146,64 € | 0 | ||

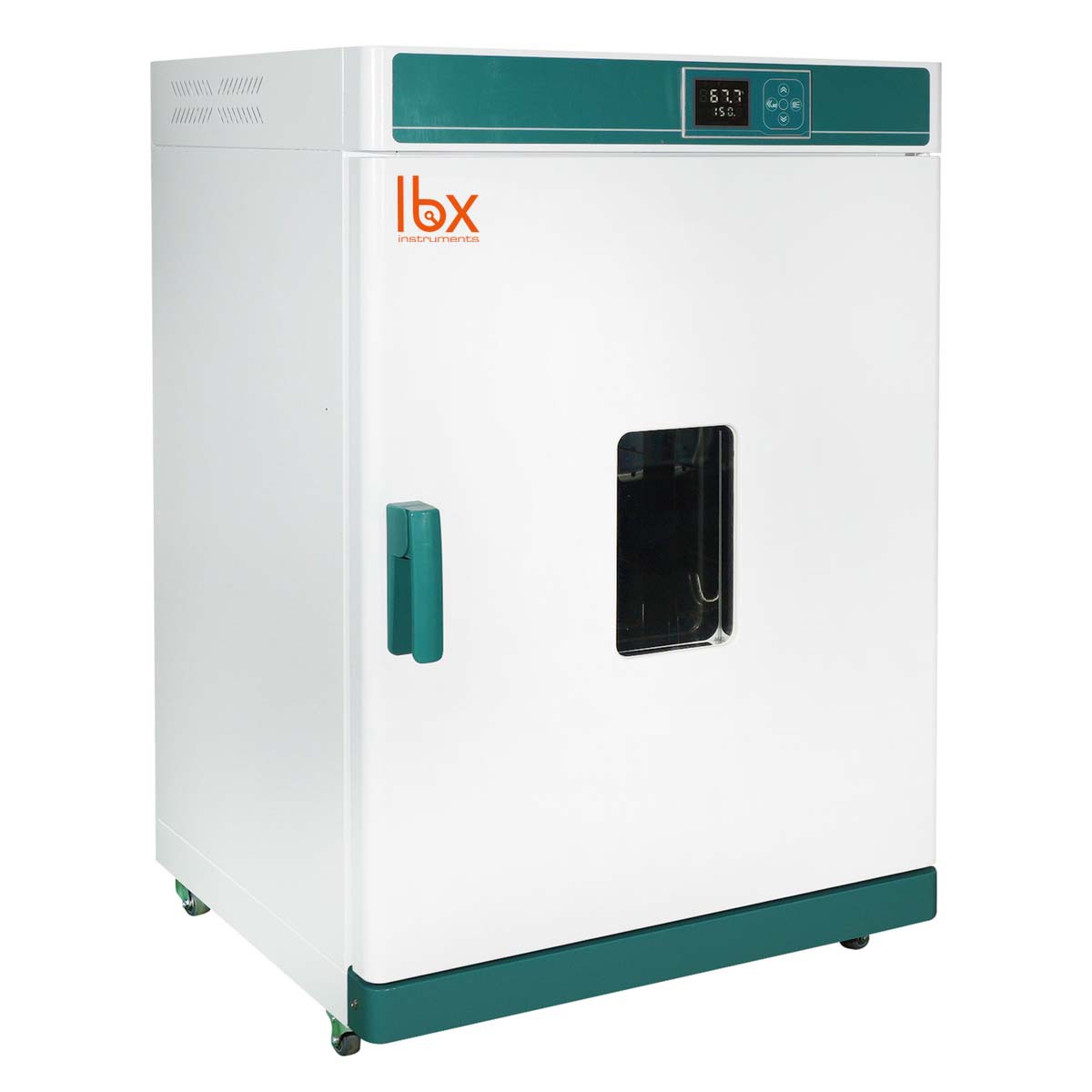

| DOVF-230-001 | 230 L | 735 x 835 x 1115 mm | 600 x 500 x 750 mm | 17 | 1 | 1.406,13 € | 20 |
Data sheet
CE certificateDescription
Metallic outer case painted with epoxy resin. Inner chamber in mirror stainless steel. Adjustable temperatures from 40° C to 300° C. Resolution: 0.1°C. Fluctuation of the temperature: ± 1°C. Temperature regulation by microprocessor with functions like over-temperature protection, sensor fault alarm, fixed temperature operation, timing function (0-9999 min), correction of deviation, internal parameter locked, etc. Homogeneity and temperature stability: ± 2.5%. Adjustable feet to facilitate the installation and leveling of the oven. Door with 180° opening window with double thermal safety glass for external control, without temperature variations in the inner chamber. Forced air convection (non-adjustable). Standard fan switch that allows to work with natural convection (except for DOVF-230-001 oven, which does not have a fan switch). Top ventilation hole Ø 35 mm (DOVF-230-001 has the hole on the rear wall and includes a test port on the right side). Easy to clean. Supplied with two grid trays adjustable in height (can accept more trays, see table). DOVF-230-001 has wheels. 220 V / 50-60 Hz. Warranty 2 years
