Heating mantle with digital screen, HM01-D
21,00 € – 194,00 €
Heating mantle with electronic temperature regulation. External temperature sensor Pt100 allows real-time temperature control through the digital screen. Maximum mantle temperature of 450°C at the surface (the maximum temperature reached by the liquid is lower due to heat loss). Continuous operation. Fast, uniform and safe temperature regulation. Includes aluminum rod, retort clamp and a Pt100 temperature sensor. 220V/50Hz. Warranty 2 years
Complies with the specifications defined in the European directive
| reference | capacity | power (W) | Ø x h (mm) | description | pcs/pack | price/pack | available stock | quantity | |
|---|---|---|---|---|---|---|---|---|---|
| HMAD-100-001 | 100 ml | 100 | 200 x 160 | - | 1 | 140,00 € | 2 | ||
| HMAD-250-001 | 250 ml | 150 | 200 x 160 | - | 1 | 148,00 € | 2 | ||
| HMAD-500-001 | 500 ml | 250 | 200 x 160 | - | 1 | 156,00 € | 2 | ||
| HMAD-1K0-001 | 1000 ml | 350 | 260 x 200 | - | 1 | 180,00 € | 1 | ||
| HMAD-2K0-001 | 2000 ml | 450 | 300 x 230 | - | 1 | 194,00 € | 2 | ||

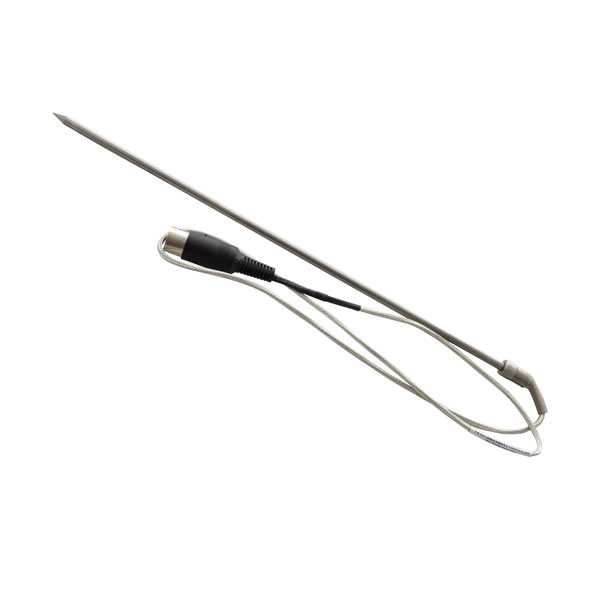

| HMAD-A01-001 | - | - | - | Pt100 sensor | 1 | 46,00 € | 2 | ||
| HMAD-A02-001 | - | - | - | PTFE protective sleeve for temperature probe Pt100 | 1 | 21,00 € | 2 |
Description
Heating mantle with electronic temperature regulation. External temperature sensor Pt100 allows real-time temperature control through the digital screen. Maximum mantle temperature of 450°C at the surface (the maximum temperature reached by the liquid is lower due to heat loss). Continuous operation. Fast, uniform and safe temperature regulation. Includes aluminum rod, retort clamp and a Pt100 temperature sensor. 220V/50Hz. Warranty 2 years
