METALLURGICAL MICROSCOPE, QUANTUM BM
Price range: 2.099,00 € through 2.199,00 €
Ideal for the analysis of opaque and semi-transparent materials, quality control, and advanced metallography. Infinity-corrected optics, available in binocular or trinocular versions with a 30° inclined head, 54–75 mm interpupillary adjustment, ±5 diopter, and R:T=50:50 split. Equipped with widefield WF10X/20 mm eyepieces and inverted quadruple nosepiece with long-working-distance plan achromatic metallurgical objectives: 5X, 10X, 20X, and 50X, all anti-fungal treated. The frame includes dual illumination system: reflected (5 W Köhler-type LED) and transmitted (3 W LED), both adjustable. Double-layer mechanical stage with 190 x 150 mm glass plate and 76 x 50 mm movement, with coaxial focusing, tension adjustment, mechanical stop, and fine focus precision of 0.002 mm. Includes Abbe condenser N.A. 1.25 with centered iris diaphragm, polarizer, and 360° rotatable analyzer. 100-240 V, 50/60 Hz. Warranty 2 years
Complies with the specifications defined in the European directive
Product covered by a 2-year warranty against possible manufacturing or functional defects. Excludes damage resulting from improper use or external conditions unrelated to the product.
| reference | description | pcs/pack | price/pack | available stock | quantity | |
|---|---|---|---|---|---|---|

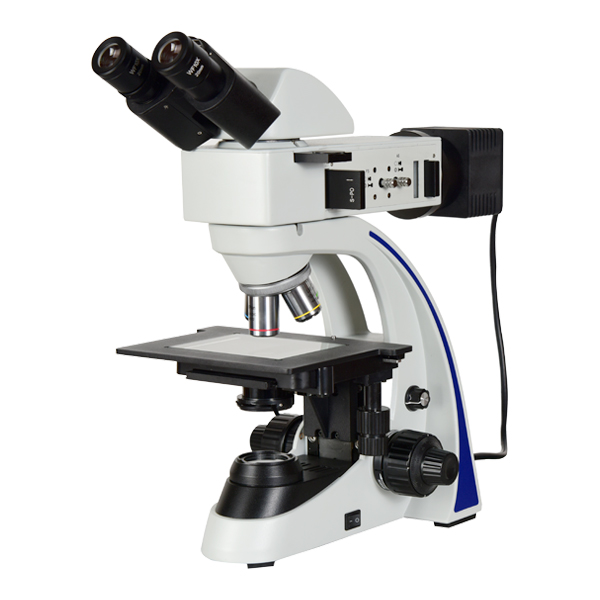

| MP03-M02-001 | binocular head | 1 | 2.099,00 € | 2 | ||

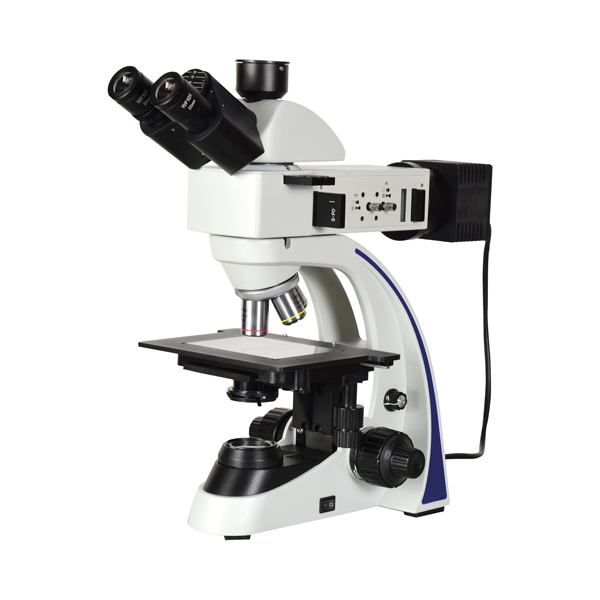

| MP03-M03-001 | trinocular head | 1 | 2.199,00 € | 0 |
User manual English
Data sheetDescription
Ideal for the analysis of opaque and semi-transparent materials, quality control, and advanced metallography. Infinity-corrected optics, available in binocular or trinocular versions with a 30° inclined head, 54–75 mm interpupillary adjustment, ±5 diopter, and R:T=50:50 split. Equipped with widefield WF10X/20 mm eyepieces and inverted quadruple nosepiece with long-working-distance plan achromatic metallurgical objectives: 5X, 10X, 20X, and 50X, all anti-fungal treated. The frame includes dual illumination system: reflected (5 W Köhler-type LED) and transmitted (3 W LED), both adjustable. Double-layer mechanical stage with 190 x 150 mm glass plate and 76 x 50 mm movement, with coaxial focusing, tension adjustment, mechanical stop, and fine focus precision of 0.002 mm. Includes Abbe condenser N.A. 1.25 with centered iris diaphragm, polarizer, and 360° rotatable analyzer. 100-240 V, 50/60 Hz. Warranty 2 years
