User manual
- VACU-V10-001
- VACU-V20-001
- VACU-V50-001

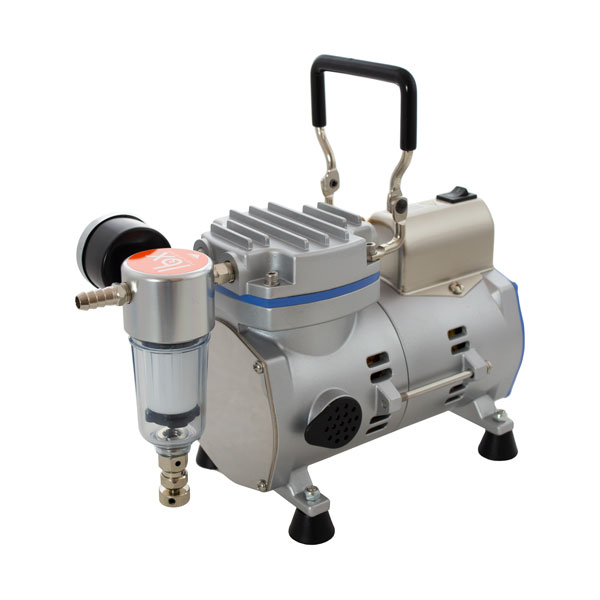

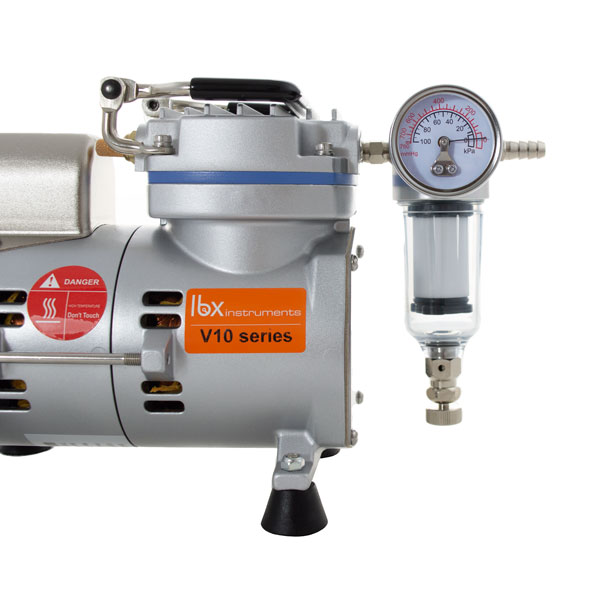

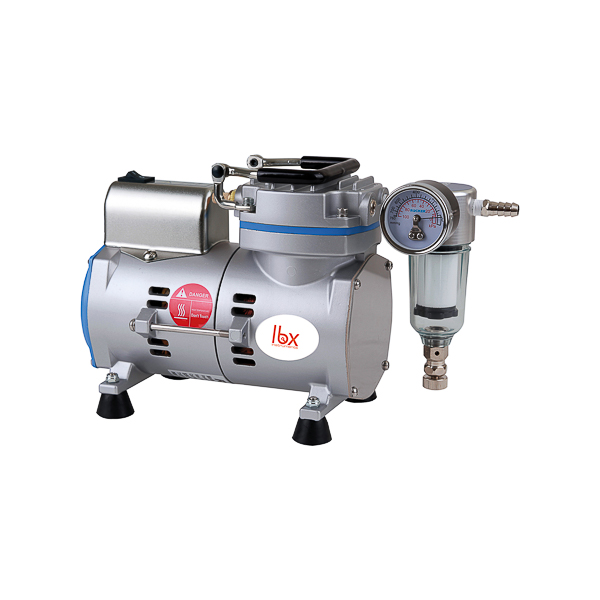

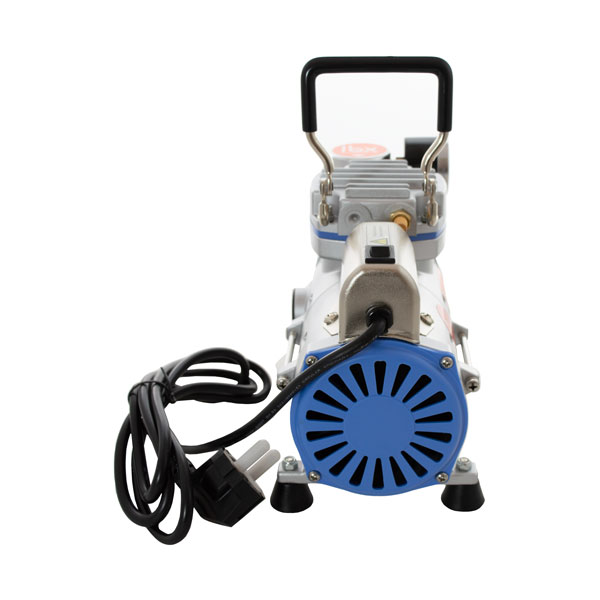

Vacuum pump, LBX V
Price range: 382,00 € through 856,31 €
For filter units, filtering flasks, desiccators and other laboratory applications. Compact and light weight. Piston powered vacuum pump, 100% oil-free transfer, clean and maintenance free. Adjustable vacuum. Vacuum gauge included. Silent running (50 dB). Overheating protection and overflow protection to prevent liquid from being sucked into the pump. Motor rotation: 1450 rpm. 220V/50Hz. Warranty 2 years. It is recommended to combine vacuum pumps with a vacuum trap, essential in those cases where you work with a filter manifold
Complies with the specifications defined in the European directive
| reference | flow rate at atm pres | max vacuum | max power | connector for tube | dimensions (length x width x height) | pcs/pack | price/pack | available stock | quantity | |
|---|---|---|---|---|---|---|---|---|---|---|
| VACU-V10-001 | 18 l/min | 120 mbar / 670 mmHg | 60 W | Ø 8 mm | 270 x 140 x 200 mm | 1 | 382,00 € | 4 | ||
| VACU-V20-001 | 20 l/min | 40 mbar / 730 mmHg | 80 W | Ø 8 mm | 310 x 140 x 200 mm | 1 | 522,06 € | 4 | ||

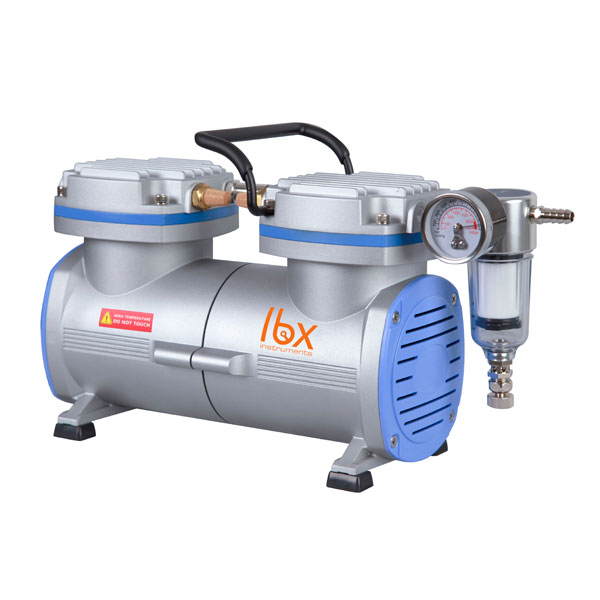

| VACU-V50-001 | 90 l/min | 85 mbar / 695 mmHg | 250 W | Ø 8 mm | 350 x 130 x 210 mm | 1 | 856,31 € | 2 |
Data sheet
Additional information
CE certificateDescription
For filter units, filtering flasks, desiccators and other laboratory applications. Compact and light weight. Piston powered vacuum pump, 100% oil-free transfer, clean and maintenance free. Adjustable vacuum. Vacuum gauge included. Silent running (50 dB). Overheating protection and overflow protection to prevent liquid from being sucked into the pump. Motor rotation: 1450 rpm. 220V/50Hz. Warranty 2 years. It is recommended to combine vacuum pumps with a vacuum trap, essential in those cases where you work with a filter manifold
