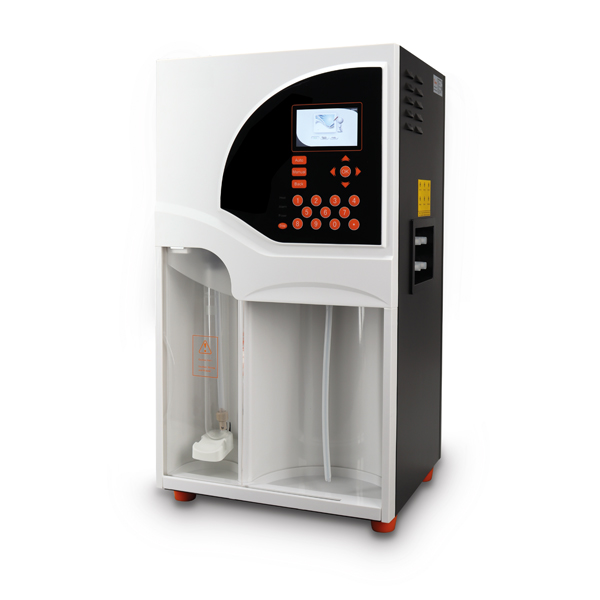

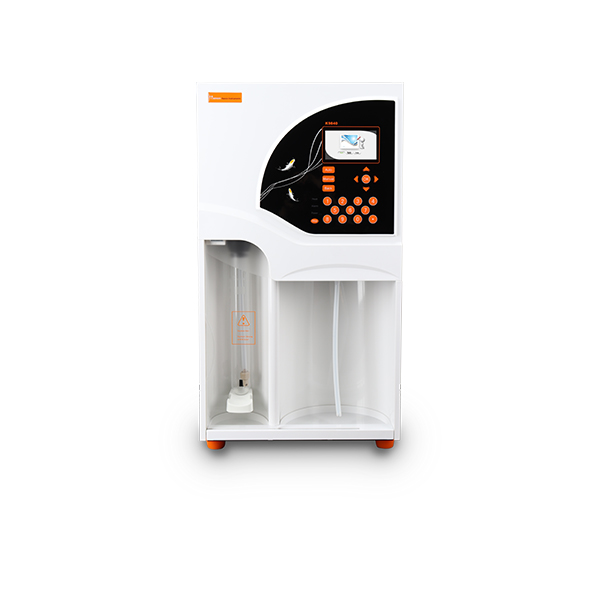

Kjeldahl automatic distiller, KJD20
4.198,95 €
Fully intelligent software that can complete sample distillation within minutes. Automatic addition of NaOH, H₂O and H₃BO₃. Automatic reagent quantification and filling. Automatic cleaning system that further enhances measurement precision. Easy to operate interface.
Measuring range: 0,1 mg – 240 mg N. Recovery ≥ 99,5%. Sample capacity: 6 g/sample (solid) or 16 ml/sample (liquid). Distillation speed: 3-6 min/sample. 4,3 inch LCD color screen. Manual and automatic operation modes. Automatic alkali pipeline washing function. Automatic or manual filling mode. Programmable distillation time with automatic alarm upon completion.
Emergency stop, automatic fault detection, over temperature protection, over pressure protection and intelligent audible and visual alarm system. Calibration function: dilution water calibration, alkali solution calibration, boric acid solution calibration and washing flow calibration. Safety door, digestion tube and cooling water condition displayed at real time when running. Built in testing model to detect the current condition of most functions. It is recommended to combine with the DTU3-042-*** digestion tubes (10 tubes included). Power: 1300 W. 220 V ± 10%, 50 Hz. Warranty 1 year
Complies with the specifications defined in the European directive
| reference | description | pcs/pack | price/pack | available stock | quantity | |
|---|---|---|---|---|---|---|
| KJDL-002-001 | Kjeldahl automatic distiller, KJD20 | 1 | 4.198,95 € | 2 |
Description
Fully intelligent software that can complete sample distillation within minutes. Automatic addition of NaOH, H₂O and H₃BO₃. Automatic reagent quantification and filling. Automatic cleaning system that further enhances measurement precision. Easy to operate interface.
Measuring range: 0,1 mg – 240 mg N. Recovery ≥ 99,5%. Sample capacity: 6 g/sample (solid) or 16 ml/sample (liquid). Distillation speed: 3-6 min/sample. 4,3 inch LCD color screen. Manual and automatic operation modes. Automatic alkali pipeline washing function. Automatic or manual filling mode. Programmable distillation time with automatic alarm upon completion.
Emergency stop, automatic fault detection, over temperature protection, over pressure protection and intelligent audible and visual alarm system. Calibration function: dilution water calibration, alkali solution calibration, boric acid solution calibration and washing flow calibration. Safety door, digestion tube and cooling water condition displayed at real time when running. Built in testing model to detect the current condition of most functions. It is recommended to combine with the DTU3-042-*** digestion tubes (10 tubes included). Power: 1300 W. 220 V ± 10%, 50 Hz. Warranty 1 year
