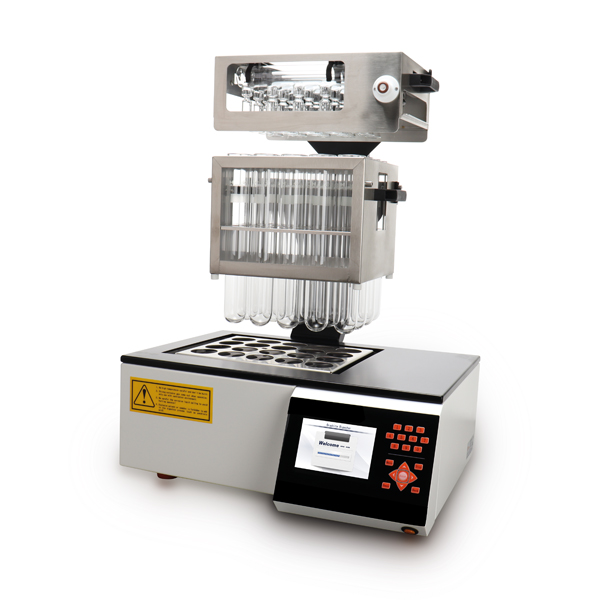

Kjeldahl digestion system, KJD10
305,45 € – 5.269,09 €
Graphite digester with advanced high temperature infrared radiation heating technology, controlled platform and anti-oxidation treatment, corrosion-resistant design for long lasting life. Temperature range: RT + 5 °C to 450 °C, quick temperature rise (400 °C in 25 minutes), accuracy: ± 1 °C. Linear and curve temperature rise modes. Offers 20 digestion programs for control of temperature rise curves. Capacity: 20 positions of 300 ml tubes. 5,7 inch color screen, easy to use.

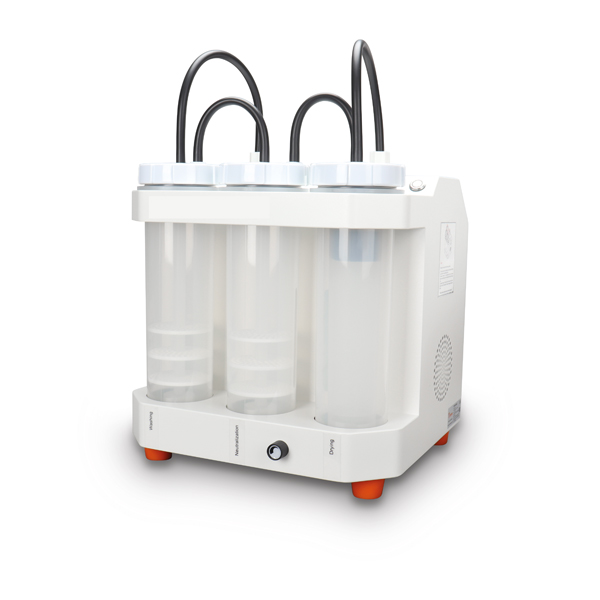

The standard configuration includes a waste gas collection hood but must be combined with the KJDL-A01-001 exhausting system (not included) to condensate and neutralize the corrosive gas waste generated in the experiment. The KJDF1 exhausting system has a triple filtration system, avoids spilling or emptying and has adjustable suction pressure with a low noise, anticorrosion vacuum pump and a PTFE anticorrosion pipe design. Environmentally friendly.
It is recommended to combine with the DTU3-042 -*** digestion tubes (10 tubes included) and the KJDL-CAT-250 catalyst tablets. High temperature alarm and overload protection. Power: 3600 W. 220 V ± 10%, 50 Hz. Warranty 1 year
Complies with the specifications defined in the European directive
| reference | description | pcs/pack | price/pack | available stock | quantity | |
|---|---|---|---|---|---|---|
| KJDL-001-001 | Kjeldahl digestion system, KJD10 | 1 | 5.269,09 € | 2 | ||
| KJDL-A01-001 | exhausting and fume elimination system, KJDF1 | 1 | 2.443,64 € | 1 | ||
| KJDL-T02-020 | sealing tubes for empty positions (mandatory to prevent gas leakage) | 20 | 305,45 € | 2 |
Description
Graphite digester with advanced high temperature infrared radiation heating technology, controlled platform and anti-oxidation treatment, corrosion-resistant design for long lasting life. Temperature range: RT + 5 °C to 450 °C, quick temperature rise (400 °C in 25 minutes), accuracy: ± 1 °C. Linear and curve temperature rise modes. Offers 20 digestion programs for control of temperature rise curves. Capacity: 20 positions of 300 ml tubes. 5,7 inch color screen, easy to use.
The standard configuration includes a waste gas collection hood but must be combined with the KJDL-A01-001 exhausting system (not included) to condensate and neutralize the corrosive gas waste generated in the experiment. The KJDF1 exhausting system has a triple filtration system, avoids spilling or emptying and has adjustable suction pressure with a low noise, anticorrosion vacuum pump and a PTFE anticorrosion pipe design. Environmentally friendly.
It is recommended to combine with the DTU3-042 -*** digestion tubes (10 tubes included) and the KJDL-CAT-250 catalyst tablets. High temperature alarm and overload protection. Power: 3600 W. 220 V ± 10%, 50 Hz. Warranty 1 year
